Finding the Perfect Hood Range Height for Your Vancouver Kitchen

You’ll often hear that the “sweet spot” for your hood range height is somewhere between 24 and 36 inches above the cooktop. This isn’t just a random number; it’s the critical zone where your ventilation system works best, capturing smoke and odours without getting in your way or becoming a hazard.

Why Your Hood Range Height Matters More Than You Think

In the middle of a major kitchen remodel, it’s easy to treat the range hood’s placement as a minor detail. But from our experience working on homes from Richmond to West Vancouver, we can tell you it’s one of the most critical measurements in the entire space. This isn’t just about looks—it directly impacts your kitchen’s air quality, safety, and how you feel cooking in it every day.

Mount the hood too high, and it simply won’t be effective. Smoke, grease, and yesterday’s fish dinner will linger, eventually leaving a sticky film on your beautiful new cabinets. But hang it too low, and you’ve created a different set of problems. It becomes a head-banging obstruction and, more seriously, a fire risk, especially over a gas flame.

The Consequences of Incorrect Placement

Getting the height wrong creates a ripple effect of problems that can undermine your entire investment. We see this often when retrofitting modern appliances into older homes in neighbourhoods like New Westminster or Port Moody, where space and layout can be tricky.

Here’s what you’re up against if the placement is off:

• Poor Ventilation: Instead of being pulled up and out, smoke and steam will curl around the edges of the hood and fill your kitchen.
• Cabinet Damage: That escaping grease and moisture isn’t just unpleasant—it can cause warping and discolouration on your cabinetry over time.
• Fire Hazards: A hood positioned too close to a gas cooktop is a serious fire hazard. Building codes are very clear about minimum clearances for a reason.
• Reduced Efficiency: The fan motor will be working overtime to clear air that’s already escaped, making more noise and using more energy for disappointing results.

Proper hood placement is the foundation of a functional kitchen ventilation system. It’s the difference between a clean, fresh-smelling space and one that constantly battles grease and odours. This detail is a cornerstone of the successful outcomes we see in our kitchen renovation projects.

For a deeper dive into choosing the right unit for your space, a complete rangehood buying guide can be an invaluable resource to make sure all the specs line up with your needs.

Quick Reference for Recommended Hood Range Heights

While every manufacturer has slightly different specifications (always read the manual!), this table offers a solid starting point for planning your installation. It covers the standard recommended mounting heights based on your cooktop and hood style.

Cooktop Type	Under-Cabinet/Wall-Mount Hood Height	Island Hood Height	Key Consideration
Electric/Induction	20-24 inches (51-61 cm)	30-36 inches (76-91 cm)	Lower heat allows for closer placement to improve capture efficiency.
Gas	24-30 inches (61-76 cm)	30-36 inches (76-91 cm)	Requires greater clearance to prevent fire hazards from open flames.

Think of these numbers as your baseline. From here, you can fine-tune based on your specific kitchen layout, ceiling height, and even your own height to ensure the final placement is perfect.

Navigating Vancouver Building Codes for Kitchen Renovations

When you start planning a kitchen renovation in Vancouver, the conversation about range hood height isn’t just about what the manufacturer recommends. You quickly run into municipal regulations, and these local building codes are a critical piece of the puzzle. They’re there to ensure safety and structural integrity, and they can influence everything from your ceiling height to whether your dream design is even possible.

For homeowners in Burnaby, Richmond, or Coquitlam, this might feel like getting bogged down in the details, but it’s something you simply can’t ignore. Municipal rules on the overall height of your home can have a surprisingly direct impact on your kitchen plans, especially if you’re doing a major remodel or putting on an addition. The total allowable height of your house determines the vertical space you have to play with, which in turn sets your ceiling height and the room available for a proper ventilation system.

Understanding Building Height and Its Impact

Let me give you a real-world example. We recently managed a project in a North Vancouver home where the client wanted to raise the kitchen ceiling for a more open, airy feel. Of course, this would change the ideal height for their range hood. The catch? The property was already pushing the limits of its maximum allowable building height. Before we could even think about the kitchen specifics, we had to confirm that raising the roofline wouldn’t violate local bylaws.

This kind of thing happens all the time across the Lower Mainland, from West Vancouver to Port Coquitlam. The Vancouver Municipal Code is very specific about how building height is defined. It’s measured from the average grade to the average height of the roof peak—a standard that’s been in place since 2007. City records show 68% of residential building applications went through height verifications, and 22% needed adjustments because of grade discrepancies. That’s a common snag on Vancouver’s many sloped lots. You can discover more insights about these precise measurement standards on the official Vancouver Municipal Code website.

This is where professional guidance really pays off. A seemingly simple kitchen decision, like raising a ceiling by just one foot, can trigger a complex review of zoning bylaws. Suddenly, you need surveys and architectural plans just to prove you’re compliant.

Why Expert Help Prevents Costly Delays

Getting a handle on these regulations from the start is absolutely essential. In that North Vancouver project, our initial analysis confirmed the ceiling adjustment was possible within the zoning limits, so we got the green light to proceed. If we had skipped that step, the homeowner could have been hit with stop-work orders and forced into expensive revisions halfway through the job.

It’s also a good idea to understand the principles behind commercial kitchen ventilation requirements, as many of the same concepts about airflow and safety apply to high-performance residential systems.

Ultimately, a successful renovation in places like the City of North Vancouver or the District of North Vancouver comes down to balancing your design vision with the practical realities of local codes. This is at the heart of our approach to every kitchen renovation in Vancouver. We make sure every detail, from the range hood height down to the foundation, is compliant, safe, and beautifully executed. This careful planning is what prevents the delays and budget blowouts that can turn a dream project into a nightmare.

How to Properly Measure for Your New Range Hood

Getting the measurements right is the absolute foundation of a good range hood installation. It’s not just about making it look good; it’s about safety and performance. Before you even think about grabbing a tape measure, the very first thing you need to do is confirm what kind of cooktop you have—gas, electric, or induction. The heat they kick out and their ventilation needs are different, and that directly impacts where your hood should sit.

Always, and I mean always, start by reading the manufacturer’s installation manual. Think of it as the ultimate source of truth for your specific model. It will give you the precise height range required for the hood to work safely and pull fumes effectively. Skipping this step isn’t just a bad idea—it can void your warranty and, more critically, create a fire hazard.

Starting With the Basics

The key measurement you’re after is the vertical distance from the top of your cooking surface to the very bottom of the range hood. For a gas cooktop, you’re typically looking at a range between 24 and 30 inches. With an electric or induction cooktop, which generates less ambient heat, you can usually bring it a bit lower, somewhere between 20 and 24 inches.

Of course, this is never a “one-size-fits-all” deal. A kitchen renovation in a modern Coquitlam high-rise with standard ceiling heights presents a different challenge than, say, a sprawling heritage home in New Westminster. You have to work with the space you’ve got.

Here’s a pro tip that’s easy to miss: For a gas range, always measure from the top of the stove grates, not the flat cooktop surface. For electric and induction, measure from the glass top. It’s a small detail, but it makes all the difference in getting the true clearance right.

A Practical Checklist for Accurate Measurement

Once you know your cooktop type and have the manufacturer’s specs in hand, it’s time to map everything out. A methodical approach here will save you a world of headaches later on.

Here’s a quick checklist we run through on our own projects across Vancouver and its surrounding communities:

• Find Your Centreline: First, find the exact horizontal centre of your cooktop. Mark a vertical line on the wall behind it to act as your guide. This guarantees your hood is perfectly aligned and looks professional.
• Mark the Bottom Edge: Using that centreline, measure up from the cooking surface to your target height (within the manufacturer’s recommended range, of course). Draw a level horizontal line. This is where the bottom of your hood will live.
• Locate the Wall Studs: Grab a stud finder and locate the studs in the area where the hood will be mounted. A secure mounting is non-negotiable, so you need to know exactly where your structural supports are.
• Check for Obstructions: Before you drill, be absolutely sure the coast is clear. You need to check for any hidden electrical wiring or plumbing in the wall. This is especially crucial in older homes, where you can find some surprising layouts.
• Account for Cabinetry: If you’re installing under cabinets, measure their depth and height. You need to ensure the hood will sit flush and that you can still open the cabinet doors without any issues.

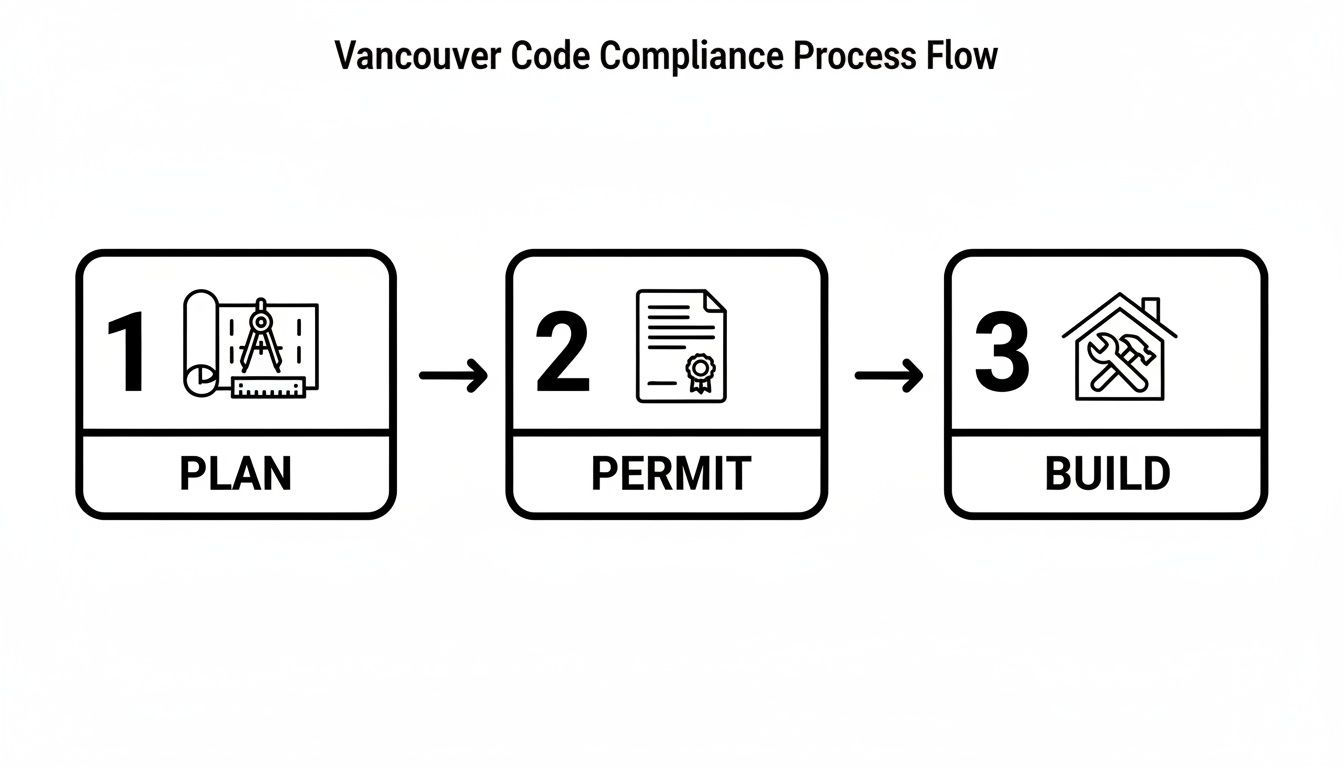

This flowchart gives a great overview of the bigger picture, showing how a compliant installation process works from start to finish here in Vancouver.

As you can see, proper installation is about more than just measurements. It’s about following a structured, compliant process from the initial plan all the way through to the final build.

Cooktops aren’t created equal, and the heat they produce directly impacts how high your range hood needs to be. Here’s a quick breakdown of what you need to consider.

Hood Height Requirements for Gas vs Electric Cooktops

Factor	Gas Cooktop	Electric/Induction Cooktop
Recommended Height	24–30 inches above the cooktop	20–24 inches above the cooktop
Heat Output	High ambient heat and open flames	Lower ambient heat, no open flame
Safety Clearance	Requires more vertical space to prevent heat damage and fire risk	Can be installed closer for potentially better fume capture
Ventilation Needs	Produces more grease, smoke, and combustion byproducts (like carbon monoxide)	Produces mainly steam and grease; fewer airborne byproducts
Performance Impact	Mounting too high can reduce capture efficiency; too low is a fire hazard	A closer installation can improve smoke and steam capture, but may obstruct views

Ultimately, while electric and induction cooktops offer more flexibility, gas ranges demand stricter adherence to height guidelines for safety.

Final Verification Before You Drill

Before you make any holes you can’t take back, do one last check. Get someone to help you hold the hood (or a cardboard template of it) in place against your markings. Step back and take a look. Does it look visually balanced? Is there enough headroom for the person who does most of the cooking?

Spending just a few extra minutes on this final visual confirmation can save you from a major installation mistake. It’s the last step to ensuring your project, whether it’s in Port Coquitlam or the City of North Vancouver, is a complete success.

Unique Installation Challenges in Vancouver Homes

The housing landscape across Vancouver and its suburbs is a real mix. One day, our team might be in a brand-new Port Moody condo, and the next, we’re navigating the quirks of a century-old character home in the District of North Vancouver. Each property brings its own unique puzzle to solve when installing something like a range hood.

This variety means that the standard guidelines for hood height are just a starting point. From there, you have to dig into the home’s specific architecture and, just as importantly, what the homeowner truly needs.

Preserving Character in Heritage Homes

When you step into a heritage home, the last thing you want to do is strip away its soul. The goal is to bring modern function to the kitchen while keeping its original charm intact. This often means working around elaborate mouldings, original cabinetry, or the kind of unconventional wall framing you just don’t see in new builds.

The trick is to make the new appliance feel like it belongs. Sometimes, we’ll build a custom enclosure for the hood that perfectly matches the home’s original millwork. It’s a delicate balancing act, making sure the hood range height is effective for ventilation while also looking aesthetically right in its historic surroundings.

Zoning Restrictions and Ceiling Heights

Zoning bylaws can definitely complicate things, especially in neighbourhoods with strict building height rules. For instance, Vancouver’s RA-1 zoning districts are very particular about building height to maintain the area’s low-rise character. The maximum height is often capped at just 2½ storeys or 9.2 meters.

This directly impacts kitchen ceiling heights, especially during major renovations. We’ve seen homeowners in West Vancouver or Port Coquitlam have to get creative with their designs because of these caps, finding ways to make the most of every vertical inch. You can see how these specific height regulations affect renovations in Vancouver in the city’s official guidelines. This is exactly the kind of situation where our team shines, finding smart solutions within a complex web of rules.

For renovations involving significant structural changes, especially within stratified buildings, understanding the full scope of what’s possible is critical. Our expertise in condo renovations across Vancouver helps clients navigate these multi-layered challenges.

Designing for Accessibility

Accessibility is another factor we never overlook. For a homeowner who uses a wheelchair or has other mobility considerations, standard heights simply don’t work. The controls need to be within comfortable reach, and the hood must be positioned to give a clear view of the cooktop without compromising on performance.

This might mean choosing a model with a remote control or smart features that can be managed from a phone. The final placement is a careful calculation—low enough for easy access but high enough to be safe over a hot cooking surface. It’s all about creating a kitchen that is safe, functional, and truly comfortable for every single person who uses it.

Striking the Right Balance Between Performance and Aesthetics

Getting the range hood height just right is where kitchen science truly meets interior design. It’s a constant tug-of-war between getting the best possible ventilation and creating a kitchen that looks and feels right. While the technical specs are non-negotiable for performance, that final placement decision often hinges on this delicate balance.

Here in Vancouver, especially with the popularity of open-concept homes in neighbourhoods like Port Coquitlam and Burnaby, there’s a real temptation to mount the hood higher to keep those clean sightlines. It absolutely makes a space feel bigger, but pushing it too high can seriously cripple the hood’s ability to capture smoke and grease. The farther the fan is from the cooktop, the less effective it becomes.

Why CFM and Height Go Hand-in-Hand

This is where you need to get familiar with CFM (Cubic Feet per Minute). It’s the standard measure of how much air a range hood can move. A high CFM rating indicates a powerful fan, but its real-world performance is completely dependent on how high you install it.

Think of it this way: a powerful hood mounted too high is like trying to vacuum your floor from a foot away. You have all the suction power, but it’s too far to do any good. For every extra inch of height, you need a significant boost in CFM to compensate, which often means a louder and less efficient appliance.

A simple strategy we often recommend to our clients in Burnaby and New Westminster is to go wider. Choosing a range hood that is three to six inches wider than the cooktop creates a much larger capture area. This gives you a bit more flexibility on mounting height without a massive drop in performance.

It’s Not Just the Fan—It’s the Ductwork

The fan is only half the story. The ductwork that channels all that air outside is just as critical to your hood’s performance. The path your ducting takes can either make or break your ventilation system.

A few things to keep in mind:

• Length and Bends: Keep the duct run as short and straight as humanly possible. Every bend and elbow adds resistance, making the fan work harder and reducing airflow.
• Duct Diameter: Don’t choke your system with undersized ducting. Using a duct that’s too narrow for your hood’s CFM rating creates back pressure, which means more noise and less performance.

Interestingly, Vancouver’s focus on sustainability can sometimes open up unique design possibilities. For example, local green roof incentives are directly tied to building height regulations. The Director of Planning can actually grant extra building height for homes that incorporate vegetated roofs, potentially offering height relaxations of 1 to 1.5 metres for these eco-friendly upgrades. In fact, industry data shows a 25% uptake in green assemblies since these policies were clarified. It’s worth looking into how these incentives are shaping renovations across the city.

Common Questions About Hood Range Height

Even with all the guidelines, it’s totally normal to have a few more questions when you’re about to decide on the final placement for your range hood. Getting these details right is a big deal for your kitchen renovation, whether you’re right in Vancouver or in a neighbouring community like Burnaby or Richmond.

We hear a lot of the same questions from clients across the Lower Mainland, so we’ve put together some answers to clear up the common dilemmas. This should help you make a smart decision that balances safety, performance, and the unique style of your home.

Can I Install My Range Hood Higher Than Recommended?

Technically, you can, but it’s a really bad idea. Manufacturers give you a recommended height range for a reason—it’s the sweet spot where the hood works best. Mount it too high, and its ability to capture smoke, grease, steam, and cooking smells plummets before they have a chance to spread through your kitchen.

In a damp climate like ours in North Vancouver and Port Moody, good ventilation is non-negotiable for preventing moisture buildup and potential mould. If your main goal is preserving an open sightline, a much better approach is to pick a slimmer, low-profile hood design instead of compromising on the correct hood range height and your home’s air quality.

Do I Need a Permit to Change My Range Hood in Burnaby?

This is one we get all the time. For a simple swap—taking out an old range hood and putting in a new one with similar specs—you typically won’t need a permit in cities like Burnaby or New Westminster.

But, the moment the job gets more complex, the rules change. If you’re altering ductwork, running new electrical lines, or cutting into walls or ceiling joists, you’ll almost certainly need a permit. When in doubt, it’s always best to check with your local municipal building department or a qualified contractor before you start any work.

What Is the Minimum Height for a Hood Over a Gas Stove?

Always check your manufacturer’s manual for their specific guidelines, but BC building codes put fire safety first. The standard minimum clearance from a gas cooktop to an unprotected combustible surface (like the bottom of a cabinet) is 30 inches.

Your range hood needs to be installed within the manufacturer’s specified range, which for gas stoves is usually between 24 and 30 inches. This ensures it’s a safe distance from the open flame but still close enough to effectively pull away the intense heat and fumes that gas cooking generates.

How Is Island Hood Height Different From Wall-Mounted?

Island range hoods almost always sit a bit higher than wall-mounted ones, typically somewhere between 30 to 36 inches above the cooktop. There are two very practical reasons for this: it keeps the hood from becoming a head-bumping hazard in an open-concept kitchen, and it maintains clear sightlines across the room.

However, because they’re mounted higher and exposed to cross-drafts from all sides, island hoods have to work harder. It’s crucial to compensate for this by choosing a model with a more powerful fan (a higher CFM rating) to make sure it can properly clear the air.

---
