Range Hood Height: Find the Ideal Mounting Position

Alright, let's get straight to it. When it comes to installing a range hood, getting the height just right is a critical balancing act. The magic number you'll hear thrown around is somewhere between 24 and 36 inches above your cooktop. This isn't just an arbitrary suggestion; it's the sweet spot that keeps your hood close enough to do its job but far enough away to avoid creating a fire hazard. Honestly, correct placement is half the battle for keeping your kitchen air fresh and clean.

Finding the Perfect Range Hood Height

Think of your range hood’s effective area as its "capture zone." It's a bit like a vacuum cleaner for your stovetop. If you hold the nozzle too high above a mess, it won't pick up much. If you jam it right into the carpet, you choke off the airflow and get nothing. The same principle applies here.

The goal is to position the hood to create a powerful pocket of suction that grabs smoke, grease, and cooking odours from all the burners—especially the front ones—before they have a chance to escape into your kitchen. This perfect distance is all about performance, safety, and making sure you can actually see what you're cooking.

The Two Most Important Factors

While a few things can influence the final measurement, two factors will always be the most important:

• Your Cooktop Type: This is the big one. A gas range with its open flames puts out a lot of heat, so the hood needs to be mounted higher to prevent heat damage or, worse, a fire. Electric and induction cooktops run cooler, which means you can safely place the hood a bit closer to maximize its effectiveness on steam and smoke.
• The Hood's Power (CFM): A range hood's suction power is measured in Cubic Feet per Minute (CFM). A high-CFM powerhouse can be mounted a little higher and still pull air effectively. A less powerful, lower-CFM model, on the other hand, needs to be closer to the source to work well.

Ultimately, you're looking for that perfect equilibrium: low enough to capture everything, but high enough that it's not a safety risk or blocking your view of the pots and pans.

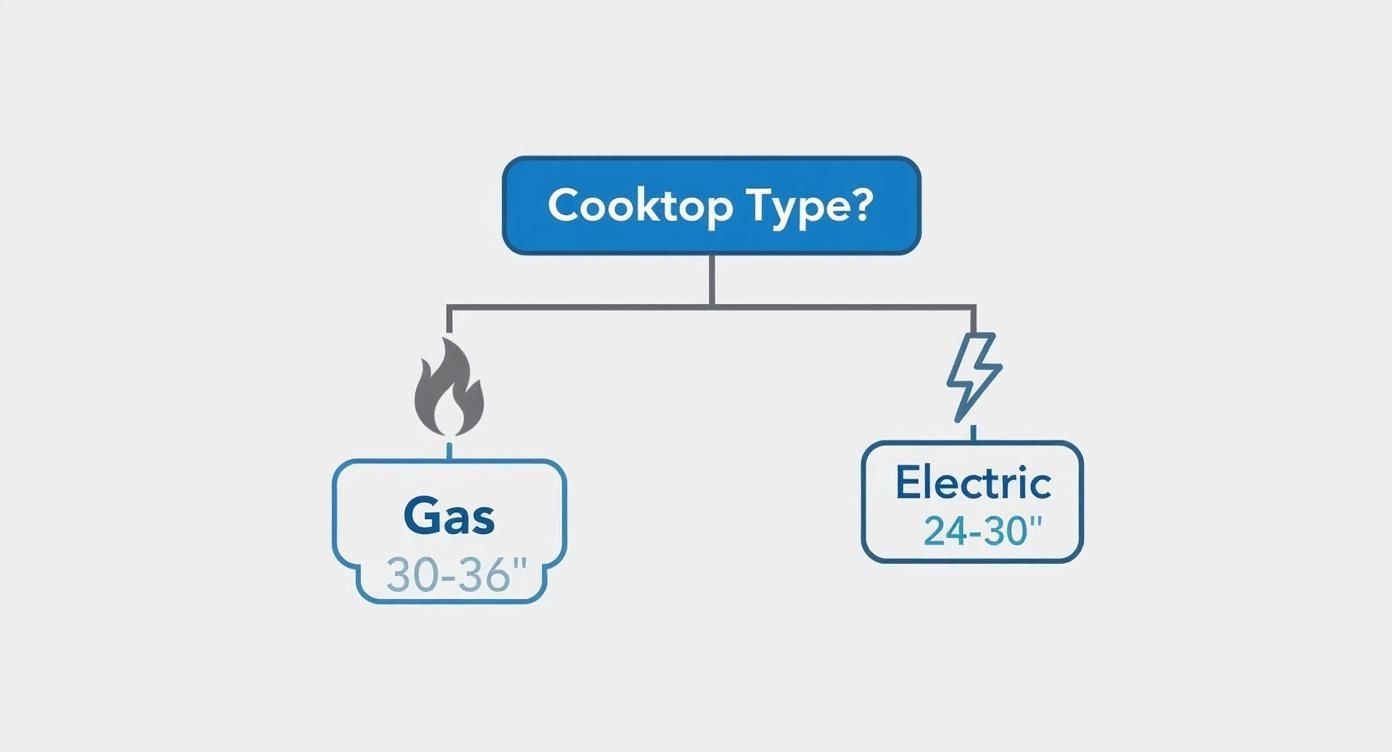

This simple infographic is a great starting point for figuring out where your installation should begin, based on the type of cooktop you have.

As you can see, the higher heat from a gas cooktop means you need to give it more space. These core principles of safety and performance are the foundation of good kitchen ventilation, but as we'll see, they're just the start.

Quick Reference for Recommended Range Hood Heights

To make things even easier, here's a quick cheat sheet with the standard mounting heights most manufacturers and building codes recommend.

Cooktop Type	Wall Mount Hood Height (above cooktop)	Island Hood Height (above cooktop)
Electric	24 to 30 inches	30 to 36 inches
Induction	24 to 30 inches	30 to 36 inches
Gas	28 to 36 inches	30 to 36 inches

These numbers provide a solid, safe starting point for your project. Always remember to check your specific range hood's installation manual, as the manufacturer will have the final say on the ideal height for their product.

How Your Cooktop Type Changes Everything

Not all cooktops are created equal, and that’s the single most important thing to know when figuring out your range hood height. Think of it this way: a gas stove is like a controlled campfire, kicking out intense, open flames. An electric or induction cooktop, on the other hand, is more like a precise heating element.

One produces high, fast-rising heat and combustion fumes, while the other creates a gentler, more direct heat. This core difference is exactly why you can't use a one-size-fits-all approach to mounting your hood. Getting it wrong isn't just inefficient—it can be downright dangerous.

The Higher Bar for Gas Cooktops

There's a reason so many serious cooks love gas ranges. That instant, responsive heat is fantastic. But that open flame also generates a massive amount of heat directly above the burners, creating a powerful thermal plume that shoots grease, steam, and combustion byproducts (like carbon monoxide) straight up.

Because of this intense heat, your range hood has to sit higher.

• Fire Safety: This is non-negotiable. If a hood is too close to an open flame, the grease collected in the filters can easily ignite. The high heat can also melt internal wiring and damage the unit itself.
• Protecting the Hood: The motor and delicate electronic controls inside your hood weren’t built to be slow-roasted. Keeping a safe distance prevents them from failing prematurely.
• Capture Zone: Luckily, the powerful upward draft from a gas stove does some of the work for you, pushing smoke and fumes upwards. This means a slightly higher placement can still be very effective.

To strike the right balance, the industry standard for a gas cooktop is a mounting height between 28 to 36 inches above the cooking surface. This creates a safe buffer from the flames while staying close enough to do its job.

The Flexibility of Electric and Induction

Electric and induction cooktops are a whole different ball game. They heat your cookware directly, which means far less waste heat escapes into the kitchen. With no open flame, the fire risk from placing a hood too close is almost zero.

This gives you the freedom to mount the hood lower. A closer installation is actually a huge advantage here, because steam from a boiling pot or vapours from a frying pan don't rise with the same force as they do over a gas flame. Placing the hood nearer to the cooktop ensures more of those airborne particles get captured before they have a chance to wander off.

• The Sweet Spot: For electric or induction cooktops, the ideal mounting height is usually between 24 to 30 inches.
• Peak Efficiency: This range is perfectly safe for these appliances and positions the hood for maximum capture efficiency.

Ignoring these guidelines leads to real problems. Installing a hood just 24 inches over a powerful gas range is a serious fire hazard and a code violation. On the flip side, mounting a hood 36 inches above an induction cooktop will likely lead to disappointing performance, leaving your kitchen full of steam and cooking odours.

Navigating Building Codes and Safety Regulations

While the manufacturer's manual is a great starting point, it's only one piece of the puzzle. When it comes to your range hood height, the real boss is your local building code. These aren't just friendly suggestions; they're legally binding rules put in place to keep your home and everyone in it safe.

Think of it this way: the manual tells you how the appliance is designed to work best, but the building code tells you how it must be installed to prevent fires and maintain healthy air. Your local code always has the final say, and ignoring it can mean failed inspections, expensive do-overs, or worse, a genuine safety hazard in your kitchen.

Why Codes Are a Homeowner's Best Friend

Building codes can sometimes feel like a hassle, but they are truly on your side. Their entire purpose is to standardize construction and head off potential dangers before they happen. For kitchen ventilation, codes zero in on two critical goals:

• Fire Prevention: Forcing a minimum distance between your cooktop and the hood isn't arbitrary. It's a scientifically-backed buffer that dramatically cuts the risk of a grease fire, especially over a powerful gas range.
• Air Quality: This is a huge one. Proper ventilation is about health. Codes make sure your system is actually pulling harmful pollutants—like nitrogen dioxide (NO₂) from gas flames and carbon monoxide—out of the air you breathe.

Seeing it this way helps reframe your range hood from a simple appliance into a crucial part of your home’s overall health and safety system. It's also why getting a contractor to assess a property’s potential before purchase is such a smart move—a pro can spot these kinds of compliance issues from a mile away.

A Look at California's Strict Standards

To see how this plays out in the real world, just look at California. They have some of the most rigorous building codes in North America, and they don't mess around with air quality. The California Mechanical Code, along with various city ordinances, generally requires residential range hoods to be installed between 28 to 36 inches above the cooking surface.

Some jurisdictions get even more granular. The city of Santa Monica, for example, specifies a non-negotiable height of 30 inches to ensure uniform safety and performance across all installations.

It's not just about height, either. Many codes now require a makeup air system. If your range hood is a powerhouse (typically anything over 400 CFM), it can create negative air pressure inside a well-sealed home. A makeup air system solves this by bringing fresh air back inside, which is essential for making sure other vented appliances, like your furnace or water heater, don't backdraft dangerous fumes.

This kind of thinking shows that codes look at your house as a complete system, ensuring that fixing one problem doesn't accidentally create another. While these are specific examples, the principles are universal. For a deeper dive into the logic behind these rules, it can be insightful to review the foundational commercial kitchen ventilation requirements, which often inform residential codes.

Bottom line? Before you drill a single hole, check with your local municipal building department or a qualified contractor. They'll give you the exact rules for your area and make sure your project is done right the first time.

How Hood Power (CFM) Affects Mounting Height

A range hood's power, measured in Cubic Feet per Minute (CFM), is one of the most important factors in deciding how high to mount it. Think of it like a vacuum cleaner. A small, handheld vacuum needs to be right on top of a mess to work, while a powerful shop vac can pull in debris from farther away. The exact same principle applies to kitchen ventilation.

This relationship between suction power and distance is fundamental. A stronger, high-CFM hood gives you more wiggle room with the mounting height, letting you place it a bit higher without losing its ability to grab smoke and grease. This is a game-changer for taller cooks or for anyone trying to create a more open, spacious feel above their cooktop.

Low-Power Hoods Need to Be Closer

Your typical entry-level range hood usually sits in the 300 to 400 CFM range. That's often plenty for light cooking on an electric or induction stove, but these units don't have a lot of "reach." To be effective, they really need to be installed at the lower end of the recommended height range—usually somewhere between 24 to 28 inches above the cooking surface.

If you hang a low-CFM hood too high, its fan just can't bridge the gap. Smoke, steam, and cooking odours will simply escape around the edges and spread through your home. At that point, the hood is more of a kitchen ornament than a functional appliance.

High-Power Hoods Offer More Flexibility

On the other hand, a high-performance hood—we're talking 600 CFM or more—has the muscle to pull air from a much greater distance. This extra power means you can confidently mount it higher, pushing toward the 30 to 36-inch end of the spectrum, and still get fantastic ventilation.

This flexibility is incredibly useful in a few common situations:

• Gas Cooktops: The high heat from a gas range requires more clearance for safety. A high-CFM hood lets you maintain that safe distance without compromising on performance.
• Taller Chefs: Nobody likes banging their head on the corner of a range hood. Mounting it higher makes the whole cooking experience far more comfortable.
• Open-Concept Designs: A higher placement can dramatically improve sightlines across the kitchen, contributing to that airy, unobstructed look many homeowners want.

It's worth noting that powerful hoods come with their own rules. In British Columbia, for instance, any hood that pulls more than 400 CFM generally requires a makeup air system to be installed. This is a crucial building code requirement that prevents negative air pressure issues in your home.

Ultimately, getting the CFM right is all about balancing the hood's power with your cooking habits, your type of cooktop, and your ideal range hood height. A perfectly balanced system isn't just effective; it's also not overkill, saving you from the unnecessary noise and expense of a unit that's too powerful for your needs.

A Practical Guide to Measuring and Installation

Alright, we’ve covered the theory behind range hood heights. Now it's time to roll up our sleeves and turn those plans into reality. Getting the measurements right is simpler than you might think, and it’s the key to making sure your hood works perfectly and looks great. Whether you're a seasoned DIYer or just making sure your contractor gets it right, this is how you get it done.

Everything starts from one place: the surface of your cooktop. Forget the floor, forget the countertops—they can be uneven. Your cooktop is the only true reference point. All your height measurements begin here to ensure total accuracy.

Marking Your Placement

Let's say you've decided on a height of 30 inches above your stove. Here’s how you transfer that number to the wall.

1. Measure and Mark: Grab a tape measure and, starting from the cooktop surface, measure up to your desired height. Make a small pencil mark on the wall. This is where the bottom edge of your range hood will sit.
2. Draw a Level Line: Use a level to draw a straight, horizontal line across your mark. This step is a lifesaver, guaranteeing your hood is perfectly straight, even if your ceilings or cabinets aren't.
3. Find the Centre: Measure the width of your cooktop and mark its centrepoint on the wall. Then, find the centre of your range hood. Lining these two points up is non-negotiable for both looks and performance.

Pro Tip: Don't forget to check the box for a manufacturer's template. Most hoods come with a paper guide that shows you exactly where to drill for mounting brackets and cut for ductwork. It takes all the guesswork out of the final steps.

Tips for a Smooth Installation

Beyond the basic marks, a few insider tricks can save you a world of trouble. Before you drill a single hole, use a stud finder. Attaching the mounting bracket directly to wall studs gives you the most secure installation possible. You really want to avoid relying on drywall anchors if you can help it.

It's also smart to step back and look at the whole picture. Your hood is a major piece of your kitchen's workflow. To make sure everything fits together seamlessly, you might want to look at a guide to comprehensive kitchen design measurements. It can help you double-check clearances and create a space that just feels right.

If this installation is part of a bigger project, careful planning is your best friend. Checking out some budget-friendly tips for renovating your condo can offer some great ideas for keeping your project on time and on budget. By taking the time to measure twice and think through the details, you're setting yourself up for a flawless installation.

Special Considerations for Unique Kitchens

The standard guidelines for range hood height are a fantastic starting point, but let's be honest—they assume a perfectly standard kitchen. The reality is often much more interesting. Many homes, especially older character houses or custom-built spaces, come with architectural quirks that demand a more creative approach.

Think of the standard rules as your foundation. From there, we need to build a custom solution that respects your kitchen's unique challenges, whether it's a soaring ceiling or a compact layout. Simply ignoring these features isn't an option; doing so can lead to poor ventilation, an awkward cooking space, or a design that just feels off. The real goal is to apply the core principles of safety and performance to your specific space.

Adapting to Island Cooktops and Sightlines

Island range hoods are a prime example of where the rulebook needs a slight adjustment. Because they hang in open space, without walls to help funnel smoke and steam, they often need to be mounted a bit higher. We typically recommend a height between 30 to 36 inches above an island cooktop.

This extra height accomplishes a couple of important things:

• It Preserves Open Views: One of the best parts of a kitchen island is that it creates an open, social hub. If you hang the hood too low, it acts like a visual roadblock, making the whole space feel smaller and less connected.
• It Prevents Head Bumps: A low-hanging hood right in the middle of a busy room is a recipe for a sore forehead. Raising it slightly gives everyone plenty of comfortable clearance to move around the island.

It's important to remember that this extra height needs to be compensated for. An island hood should be wider than the cooktop—at least six inches wider in total—and have a higher CFM rating. This extra power ensures it can still effectively capture cooking fumes from a greater distance.

Working with Architectural Constraints

Many homes come with built-in structural challenges that can throw a wrench in a straightforward range hood installation. From dramatic ceiling heights to pre-existing custom cabinetry, you have to plan around the features already in place.

Vaulted or cathedral ceilings are a common one. A standard chimney piece just won't be long enough to cover the distance from the hood to that high ceiling. The fix is a chimney extension kit. Most manufacturers offer these to accommodate the extra height while keeping everything looking clean and properly finished.

Likewise, the placement of under-cabinet hoods is entirely dictated by the cabinetry itself. Their height is locked in by the clearance you have beneath the cabinet, which is why it’s so critical to plan for ventilation from the very beginning of a kitchen design. If you're working with a tight area, our guide on renovating your small space kitchen has some great advice on integrating appliances efficiently.

This all circles back to the direct link between proper installation and the air you breathe. Data from California municipal records showed that 87% of compliant range hood installations stuck to the 28- to 36-inch height guideline. This correlated with a significant 12-15% reduction in indoor particulate matter. You can read more about these California kitchen exhaust requirements and their real-world health benefits. No matter the design puzzle, getting the range hood height right is a cornerstone of a safe, functional, and healthy kitchen.

A Few Common Questions About Range Hood Height

Even with all the guidelines laid out, a few specific questions about range hood height almost always pop up during a kitchen project. Let's run through some of the most common ones I hear from homeowners. Getting these details right will help you lock in your installation plan with confidence.

These aren't just minor details; the final height you choose affects how you use your kitchen every day and, more importantly, keeps it safe. Making sure you have the right answers means your kitchen won't just look great—it'll work great, too.

What Happens If My Hood Is Too High or Too Low?

Mounting your range hood outside that recommended sweet spot can cause a couple of very different, but equally frustrating, problems.

If you hang it too high, the hood's ability to actually capture smoke and steam plummets. Instead of being sucked outside, cooking fumes, grease, and odours will just roll past the hood and settle everywhere else in your home. It pretty much defeats the whole purpose of having one.

On the flip side, mounting it too low is a genuine safety risk. Over a gas cooktop, it becomes a fire hazard. Even with an electric stove, it gets in your way, blocks your view of the back burners, and makes it a real pain to use larger pots. That perfect height is a critical balance between performance and safety.

A correctly positioned range hood isn't just an appliance; it's the primary guardian of your kitchen's air quality. Misplacing it by even a few inches can render a powerful unit ineffective.

Do I Need a Professional for Installation?

While a seasoned DIYer can probably tackle a simple swap-out, I almost always recommend calling in a professional. A pro knows how to properly anchor the unit to the wall studs, wire it correctly, and run the ductwork to the outside of your house so it actually works.

Hiring an expert guarantees the installation is up to local building codes and that your new appliance is running at peak efficiency. It's the best way to avoid costly or dangerous mistakes that could mess with your home's safety and air quality down the road.

Can I Mount My Hood Higher for a Better Look?

Sometimes, the design calls for a little extra height. You can mount a hood higher for aesthetic reasons, but you have to compensate for it properly. To make up for that extra distance from the cooktop, you'll need a hood with more muscle and a wider reach.

This means you need to choose a unit that's at least six inches wider than your cooktop and has a much higher CFM rating. That combination gives it the power to pull in smoke and odours from farther away. Just be sure to check the manufacturer’s specs and chat with your installer before letting looks dictate the placement.

---

A perfect installation balances safety, performance, and design. At Domicile Construction Inc., we bring decades of experience to ensure every detail of your kitchen renovation, including proper range hood height, is handled with expert precision. Plan your project with us today.
